Brand: LUXUS

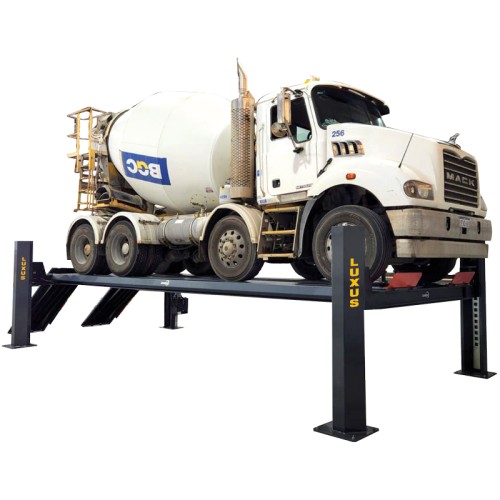

A class-leading range of three 4 post commercial vehicle lifts designed for those customers where, quite simply, only the best will do.

A range of three dedicated electro-hydraulic Commercial Vehicle lifts, designed and manufactured in Europe, to ensure maximum productivity, safety and durability in your workshop.

Available with a 25 tonne lifting capacity as standard, (16 or 30 tonne versions also available), these electro-hydraulic lifts incorporate an innovative column design, which negates the need for longitudinal welds. Available with 8m platforms as standard, an optional 9m platform version is also available on request. A great addition to any commercial vehicle workshop.

The design of every Luxus lift is focused on build quality and safety, ignoring unnecessary ‘marketing’ innovations which are often used to mask a reduction in manufacturing costs. Thickness of steel, quality of welds, and sourcing of premium quality key components from only the most reliable sources are the basic criteria for Luxus commercial vehicle lifts.

Safety: The Prime Consideration
Safety is our prime consideration; We hope that you’ll never need to see the advanced Luxus safety systems at work but you can rest assured, they will keep you safe while using a Luxus lift.

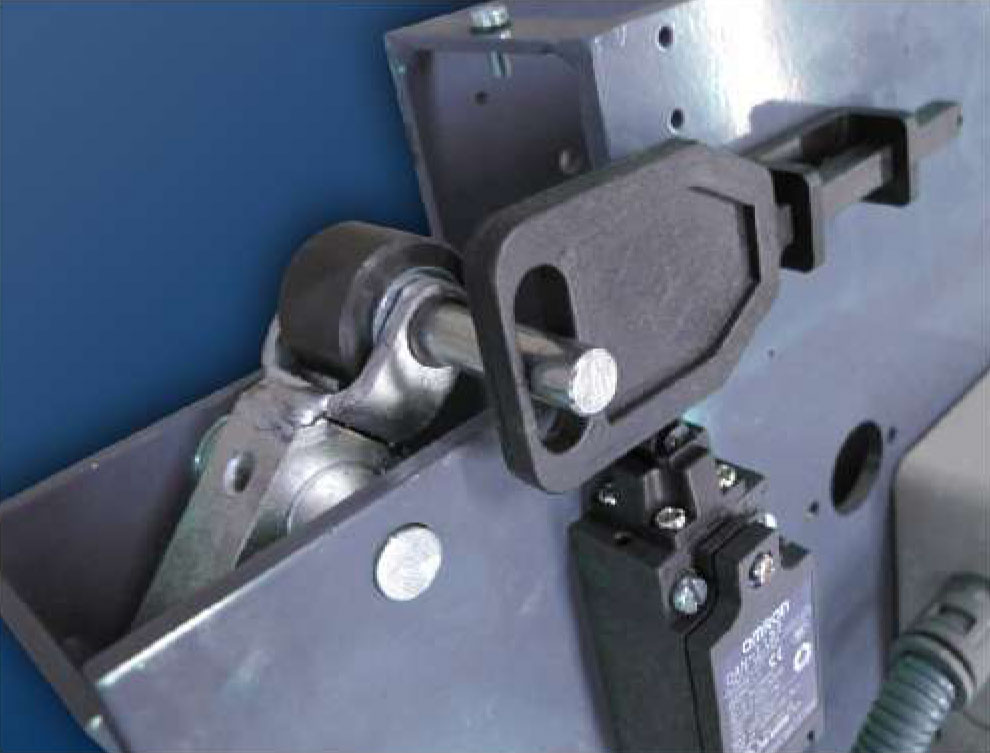

4-post_25t_Brochure-with-Post-it-notes-3 Four Post Commercial Vehicle Lifts

Automatic electromagnetic safety locks in each post

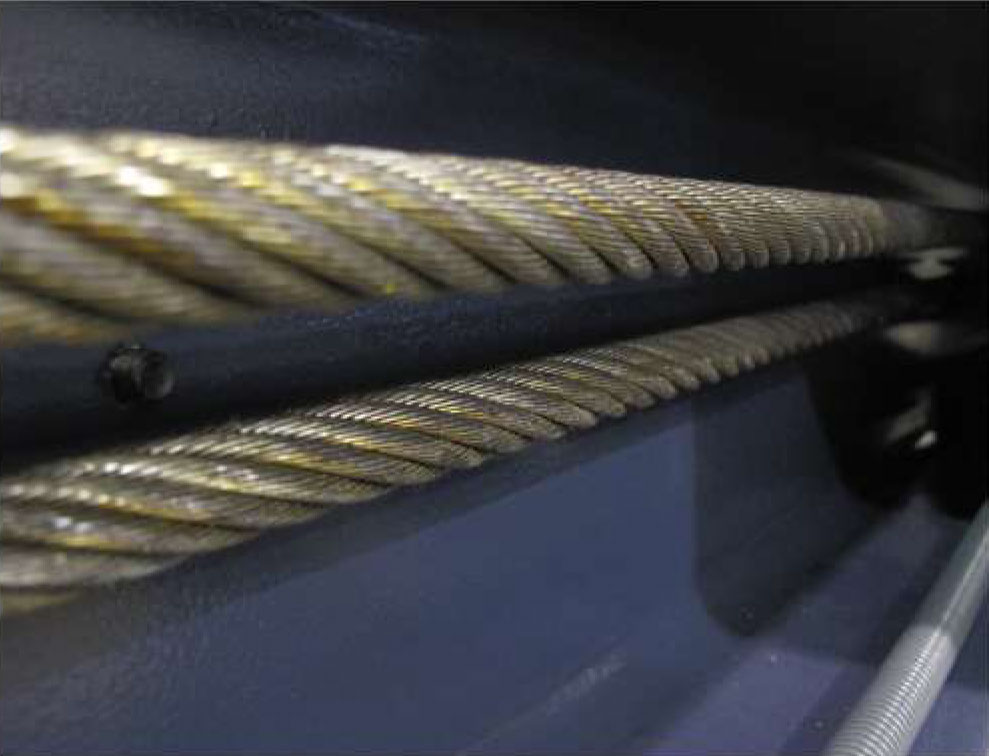

cables Four Post Commercial Vehicle Lifts

Prestressed double steel cables for superior strength and reduced wear

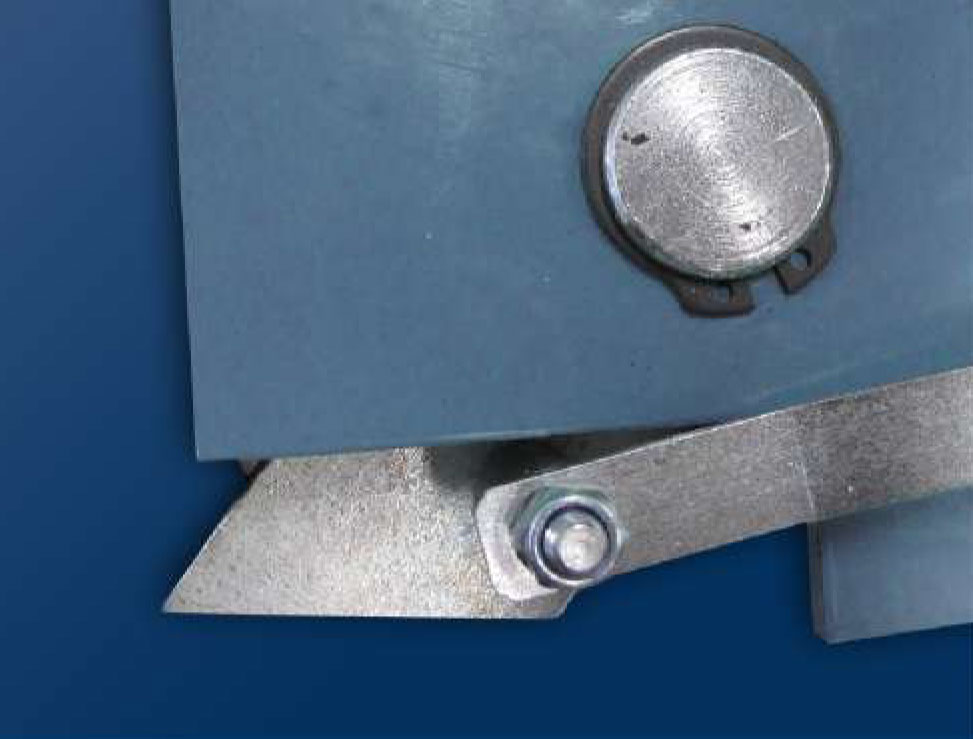

Locking-device Four Post Commercial Vehicle Lifts

Locking device allows cables to rest load-free, increasing safety

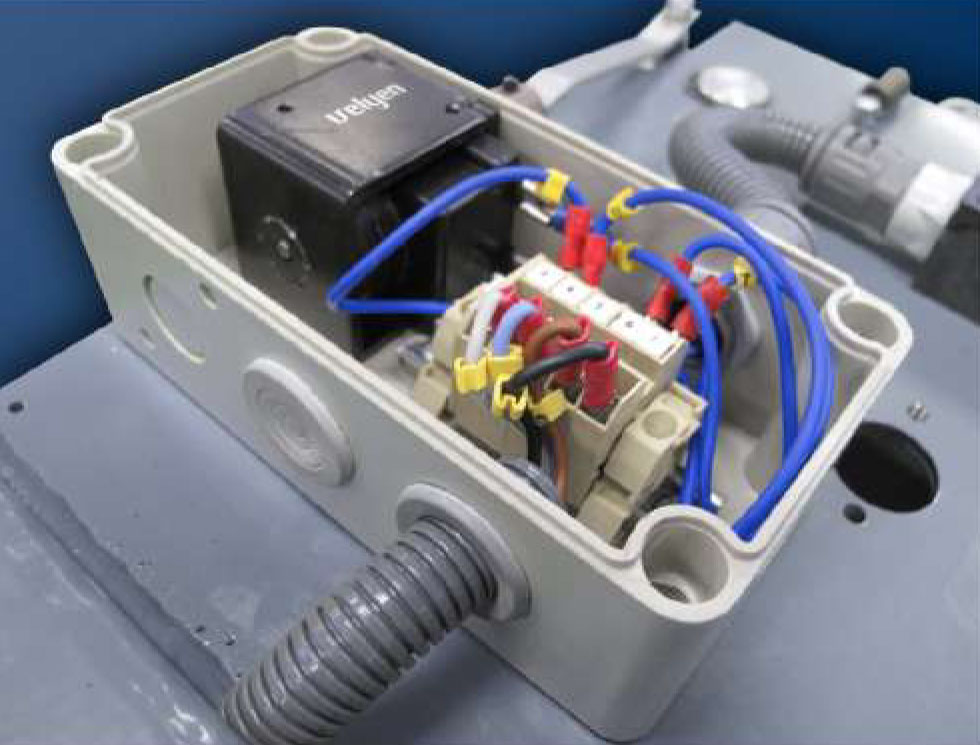

Electrically Four Post Commercial Vehicle Lifts

Electrically controlled locking system

toe Four Post Commercial Vehicle Lifts

Toe-trap protection

  • Available in 25 Tonne as standard or optional 16 and 30 Tonne versions
  • Available with 8000 mm platforms as standard or optional 9000 mm platform version
  • Innovative design of columns without longitudinal welds
  • Electro-hydraulic lifting system operated by a double piston hydraulic cylinder
  • Automatic electromagnetic safety locks in each post (no compressed air required)
  • Slack cable safety lock – activates if obstacles are encountered, or in the event of a cable snap/breakage
  • Hydraulic cylinder with regulator valve controls lift descent speed
  • Safety valve against overpressure in the hydraulic unit
  • Separate “dead man” type up/down pushbuttons, and an on/off switch lockable by padlock
  • Protection in the areas of the pulleys
  • Automatic release of the safety lock, when pressing the “DOWN” button
  • When the lift is in the air, the rear drive on ramps fold down to act as a safety stop in the event that a vehicle rolls backwards
  • Fixed front safety stops to mitigate risks of a vehicle rolling forward
  • Upper height limit switch

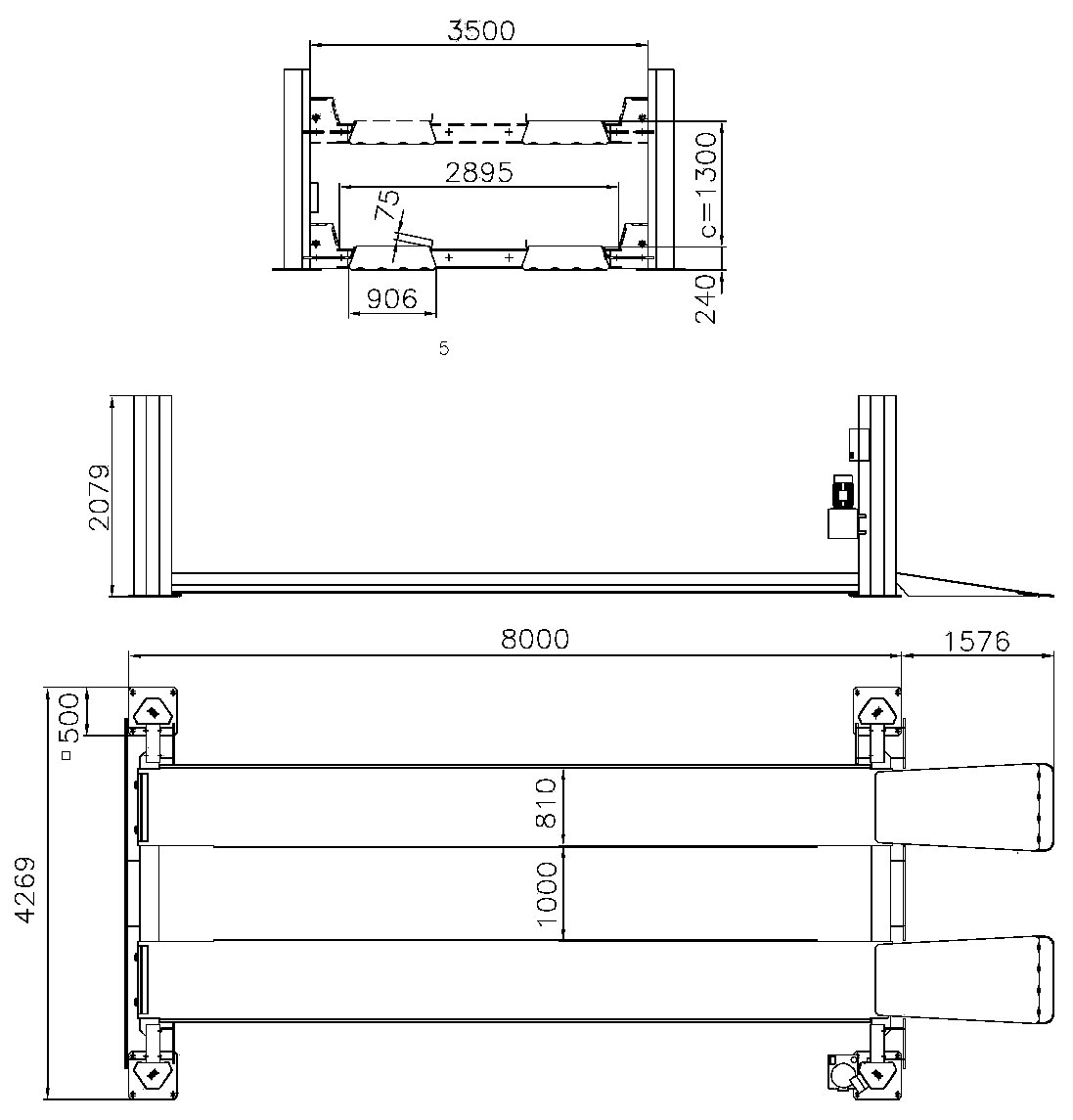

4-Post-Commercial-Vehicle-Lifts-dims Four Post Commercial Vehicle Lifts
