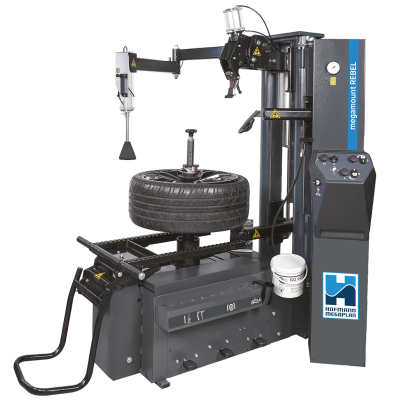

The Rebel is one of the newest additions to the Hofmann Megaplan range, and represents the most advanced tyre changer technology available.

This latest-generation super-automatic tyre changer with ‘Dynamic Leverless Operation’ is suitable for rim diameters up to 30”. The centre post design, combined with a new, PATENTED contact-free leverless operation and integrated bead press system, ensures maximum protection for specialist alloys and carbon fibre rims.

Product Specifications
Designed for precision handling of modern tyres, the megamount REBEL delivers contact-free operation and robust performance:

  • Clamping range: 10″ – 30″
  • Max wheel diameter: 1,200 mm (47″)
  • Max wheel width: 380 mm (15″)
  • Bead breaking force: 12,000 N
  • Turntable speed: Variable 0 – 16 rpm (Motoinverter drive)
  • Inflation system: Pedal-operated, up to 4.2 bar (60 PSI) with safety limiter
  • Build: Heavy-duty cast iron chassis, made in Italy

Download Spec SheetPDFicon megamount Rebel Tyre Changer | ISN Garage Assist | Enquire Now



A Trusted Name in Garage Equipment
For over two decades, Hofmann Megaplan has been a leading provider of premium workshop machinery across the UK. Built on a reputation for innovation and reliability, the megamount REBEL continues this tradition, delivering advanced technology and robust construction to handle the challenges of today’s most demanding tyres.

Explore More Hofmann Megaplan Products

Manufactured 100% in Italy, this brand-new centre post tyre changer incorporates the most advanced tyre changer technology available. It is built with extra durability, and is highly feature-rich, featuring a wheel lifter, integrated bead press system and touchless, leverless operation, together with an ability to accommodate rims up to 30” in diameter.

Why You Should Contact ISN Garage Assist
Choosing the right equipment can be challenging, and that’s where ISN Garage Assist makes a difference. Our team of experts provide honest, tailored advice to ensure you invest in the best solution for your workshop. From project management through to installation, training, and aftercare, we’re here to support you every step of the way, so you get more than just equipment; you get a long-term provisioning partner.

Patented contact-free dynamic leverless system
Rebel uses an absolutely innovative leverless assembly/disassembly system. The particular shape of the tool with two grippers and movement in two directions (axial and radial) simplify the process. The tool lowers to engage the bead with the front lever, closes to allow the rear lever to lock it, keeping it in position, and moving away from the edge of the rim. All without exerting pressure that could damage the tyre and avoiding contact with the rim.

Combined bead removal with discs
Combined bead removal is achieved through the operation of two disc arms. Dedicated pushbuttons allow full control of the bead breaker process, while the rigidity of the frame housing the lower disc arm allows for more effective pressure application when working on particularly difficult tyres.

Locking capacity up to 30”
The REBEL features a self-centring locking device with translational movement. The cast iron structure guarantees an extraordinary sturdiness, which will withstand any stress without suffering damage. Clamping is optimal on any type of rim up to 30”, ensuring maximum safety when in operation.

Motoinverter
The turntable motor on the REBEL is controlled by a motoinverter system with progressive speed variation from 0 to 16 rpm. The inverter board is installed on the machine, away from the engine to overcome vibration and heat problems. Low power consumption at rest with the intelligent stand-by. High reliability and protection, with automatic alarm reset bringing the pedal to the resting position (no power outages required).

Pedal operated inflating device
Pedal-operated inflating system, with manometer and CE-certified inflation pressure limiter (4.2 bar/60PSI).

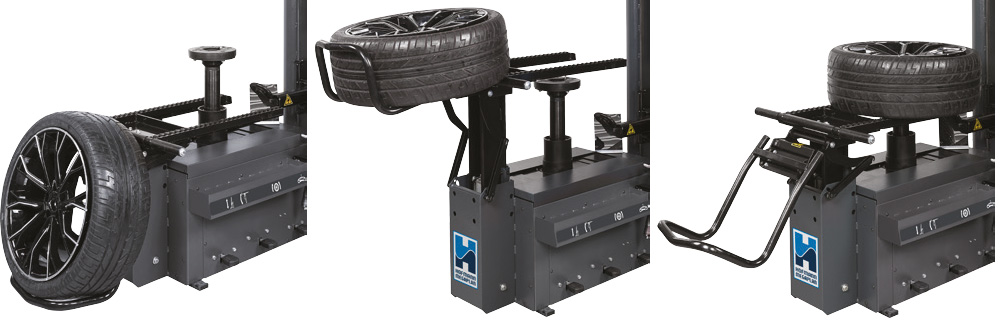

Wheel lifter
An extremely useful addition for the safe lifting and centring of even the heaviest wheels into the working position, ensuring perfect alignment throughout every phase. The operator controls the movement with a single pedal with continuous action, without any effort.

Rebel-wheel-lifter megamount Rebel Tyre Changer | ISN Garage Assist | Enquire Now

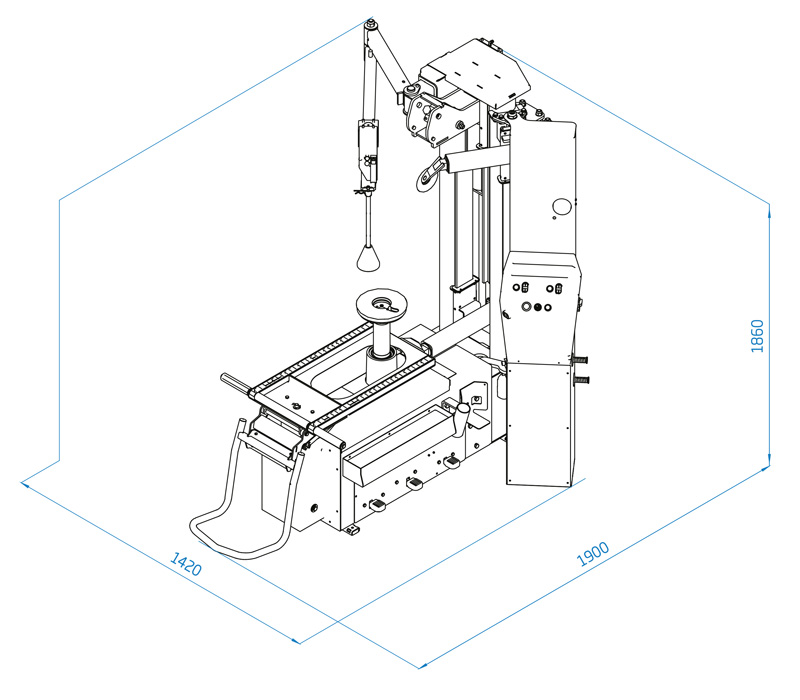

megamount_REBEL-dims-web megamount Rebel Tyre Changer | ISN Garage Assist | Enquire Now
