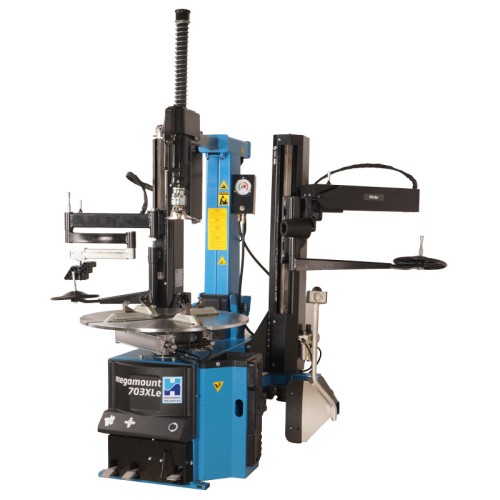

megamount 703XLE Tyre Changer
Brand:
Hofmann Megaplan
• Large Turntable Capacity: Features a 28” turntable with a wide rim external clamping range from 12”–26”.
• Automatic Operation: Equipped with a pneumatic system for locking the operating arm and a tilting vertical arm controlled by a foot pedal.
• Powerful Hand Operated Bead Breaker: Hand-operated via two buttons for ultimate start/stop control, featuring a bead-breaker with a double-effect pneumatic cylinder.
• User-Friendly Design: Includes an extractable pedal unit and an oversize body for enhanced stability and ergonomics.
• Pedal Inflation: simple accurate tyre inflation at a touch of a pedal.
Product Specifications
External locking rim dimension 12” - 26”
Internal locking rim dimension 14” - 28”
Max. tyre diameter 1200mm (47”)
Max. tyre width 350mm (13.7”)
Force on bead breaker blade (10 bar) 3000 kg
Working pressure 8 bar – 10 bar (116 – 145 psi)
Inflating pressure max. 3.5 bar (50 psi)
Power supply voltage (1Ph) 230V
Motor power (1ph) 0.75 kw
Rotating speed 7 rpm
Max. spindle torque 1200 N.m
Noise level in working condition ≤70 db (A)
Dual Assist System: Help & Press Arms
• RACING CAPABILITY: Engineered for the toughest Ultra High Performance (UHP) and Run-Flat (RFT) tyres, meeting rigorous testing standards.
• THE PRESS ARM: Specifically holds the second (upper) bead firmly into the drop centre during mounting/ demounting, making the most difficult stage effortless.
• THE HELP ARM: Positions the lower tyre bead, assisting in introducing the tyre lever and ensuring the bead stays in the correct location throughout the process.
• OPTIMAL EFFICIENCY: The two arms can be configured for optimised dual-pressure settings, allowing faster and easier operation on both sides of the tyre.
• TOTAL RIM SECURITY: Upgrade option available to eliminate manual force and slippage risks, ensuring zero damage to expensive alloy rims during highly stressed tyre changes.
