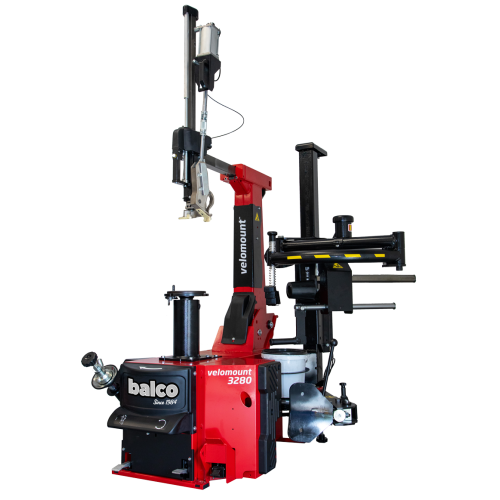

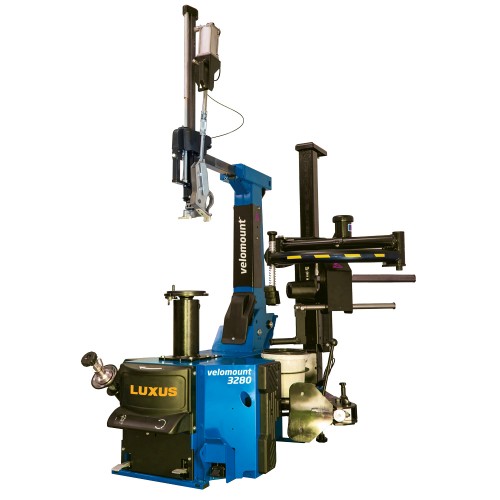

velomount™ 3280 Tyre Changer

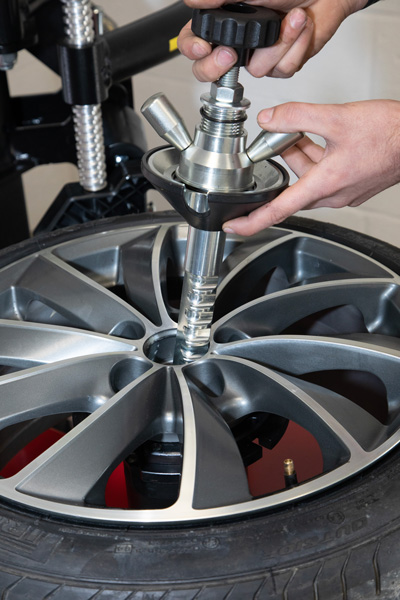

The velomount 3280 is a super-duty, high-performance tyre changer with 10” to 28” clamping via Centre-Post. The Centre-Post design eliminates any external clamping of the rim, instead securing the rim via cone and shaft arrangement, similar to a wheel balancer. The rim is then secured into place using a quick-release locking device, leaving the area around the tyre free to work without impingement from clamping cylinders or traditional turntable.
Leverless operation provides the easiest, safest fitting and removal process available, and the StrongArm super-duty assist arm provides all the usual functions you would expect from a machine of this level, but with the added feature of a lower-bead removal function. Variable-speed rotation provides maximum flexibility for the operator, and an ergonomically positioned bead breaker operating pedal (no stretching your leg to reach the pedal whilst breaking the bead!) completes the luxury specification.
Features
- Centre post design - No rim damage from clamps

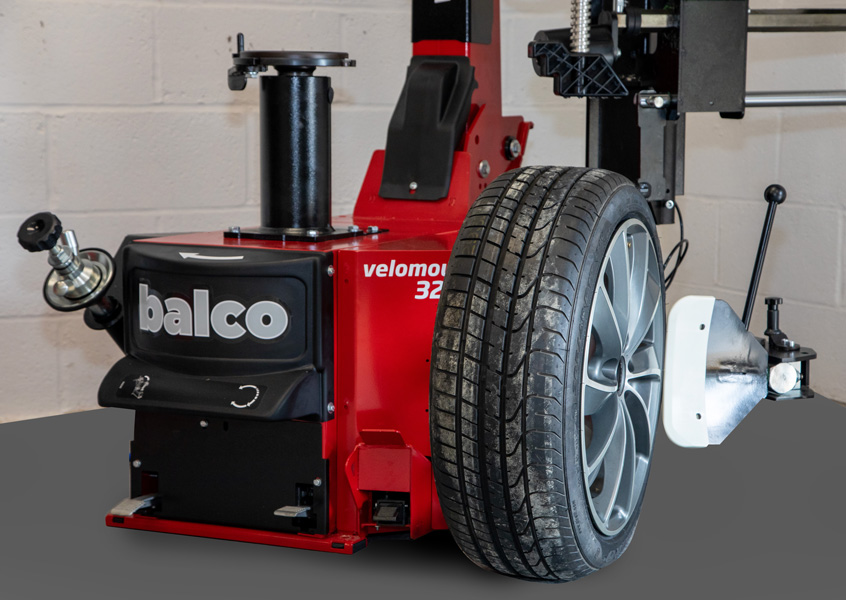

- 10” – 28” Rim capacity

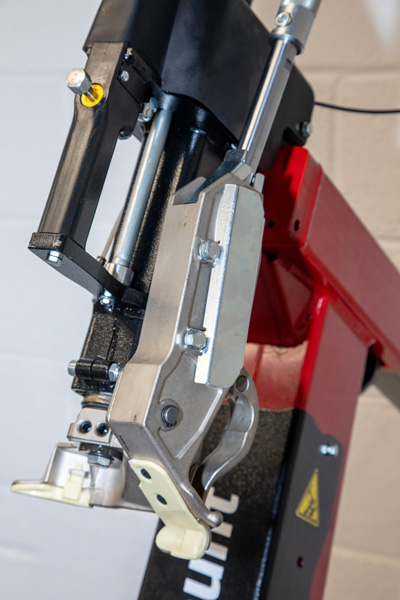

- Leverless operation

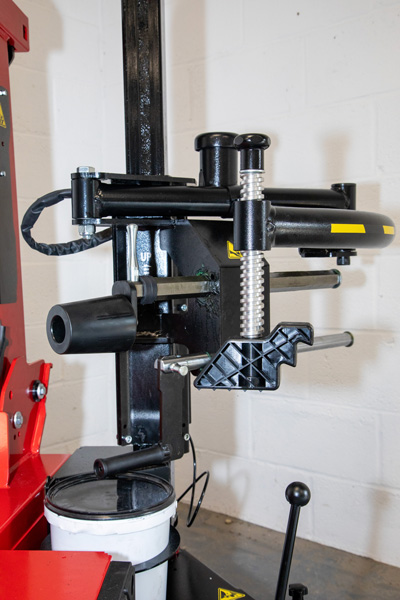

- StrongArm super-duty assist arm

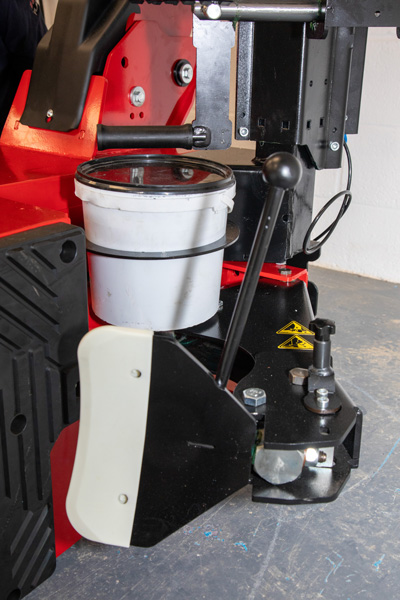

- Ergonomically-positioned bead breaker operating pedal
Technical Specification
| Rim clamping range: | 12" - 28" Clamping capacity |
| Max tyre diameter: | 43’’ (1100 mm) |
| Max tyre width: | 16’’ (415mm) |
| Bead breaker cylinder force at 10 bar: | 30800 N |
| Operating pressure: | 10 bar (145 Psi) |
| Power supply: | 220V – 1ph |
| Motor power: | 0,75 kW |
| Net weight: | 360 kg (with assist arm) |

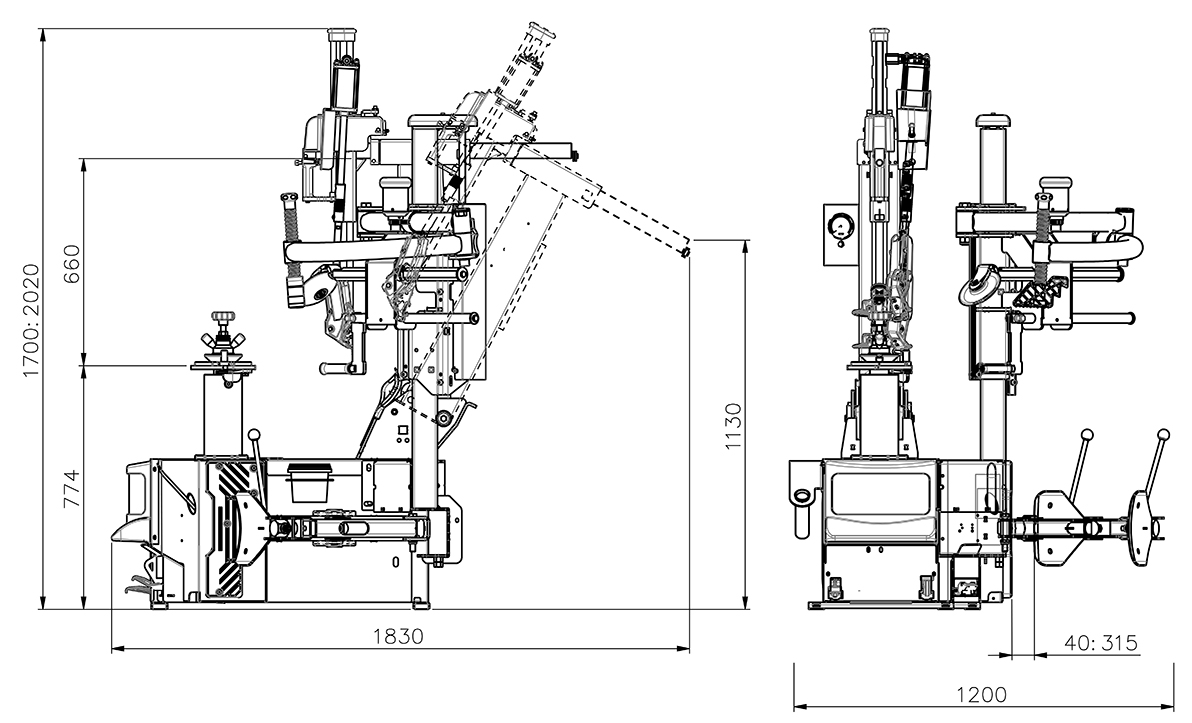

| Max overall Dimensions: | 2020mm x 1200mm x 1830mm (With Assist Arm) |
