Brand: Cascos

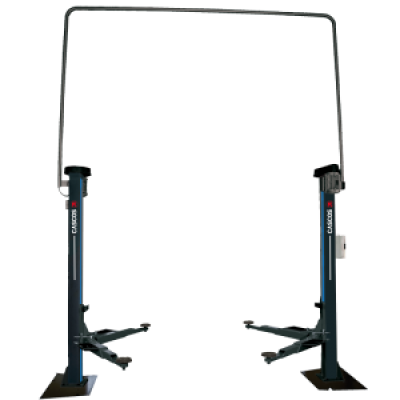

Using traditional electro-mechanical design (which the Chinese have failed to copy), the 'Syncro' range gives you everything you love about the classic Cascos 2 Post Lift, but with the added benefit of being completely baseless and providing a clear floor between the columns.

Also available as:
C3.2 Syncro Confort - with asymmetric arms
C3.2 Syncro Premium - with symmetric arms and a lower pad height of 85mm

The genius in this is the fact you have what some would consider a perfect solution, traditional 'screw' design in a baseless lift, without what some would see as the compromise of electro-hydraulic operation. Each column has an independent motor, and perfect synchronisation is achieved through a simple PLC (Programmable Logik Controller). As with all Cascos lifts, bi-directional approach capability allows for the vehicle to be mounted in either direction on the lift without any fear of instability.

All Cascos Syncro lifts now include the game-changing ILC (Intelligent Lift Control) unit as standard, giving the owner a totally new concept of 'management' of their 2 Post Lift.

PDF: 11 Reasons to invest in a Cascos two post lift

*3 Year Parts & Labour Warranty subject to annual servicing by an ISN engineer.

Slendertec Lifting Columns
Our ‘SlenderTec’ columns are made from rolled, solid steel profiles as opposed to folded sheets of steel as used on our competitors’ lifts. This not only provides up to 60% more strength, but also allows us to have a slimmer column, meaning maximum width between the columns whilst maintain a minimum overall footprint of the lift. On first glance, customers often remark that our Cascos Lifts looks ‘skinny’. They’d be right, but this has nothing to do with lack of strength or build quality, completely the opposite in fact. It is a more expensive method of production, but far more practical and, in plain engineering terms, far more logical than the cheaper option of folded steel sheet.

Bi-directional Loading of Vehicle
The SlenderTec columns enable Cascos lifts to feature symmetric lifting arms as opposed to asymmetric (where the vehicle is offset to allow door opening access, with a Cascos lift this access isn’t a problem). This means that you can drive on or reverse on, it makes no difference.

Double Height Pads

C3_Double_Insert_150x200_1 Baseless Two Post Lifts: Cascos C3.2 Syncro Two Post Lift

Unlike most other brands, whereby you are forced to purchase additional lifting pads for vehicles which require a higher reach, the C3.2 comes as standard with our unique ‘Double Height’ system. With this design, the lifting pad works on a telescopic ‘screw within a screw’, that allows you to extend the pad to travel the same distance again once it has reached it’s first, conventional highest lifting position.

Included as standard, all 2 post lifts are supplied with:

• Tool Trays
• Rubber protections on columns for safe door opening
• Arm safety locks, via spindle rod, offer more positioning possibilities under the vehicle
• Spindle protection to avoid the operator getting dirty when touching the post.

This baseless version uses the unique Cascos PLC system. This system is far more reliable than cable or PCB synchronisation methods, and allows our lift to either be used with an adjustable overhead gantry or under the floor for complete freedom of floor or overhead obstructions.

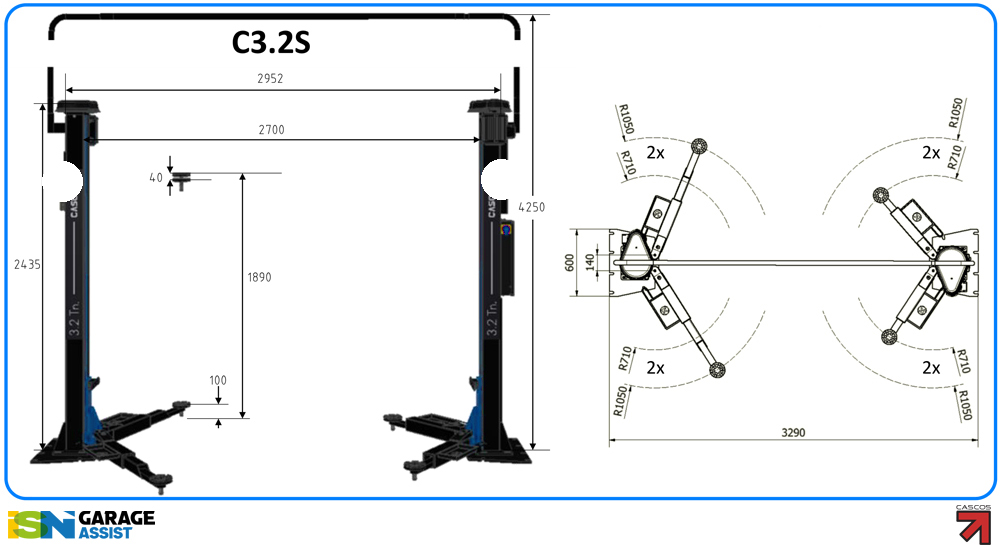

Cascos-3.2S Baseless Two Post Lifts: Cascos C3.2 Syncro Two Post Lift

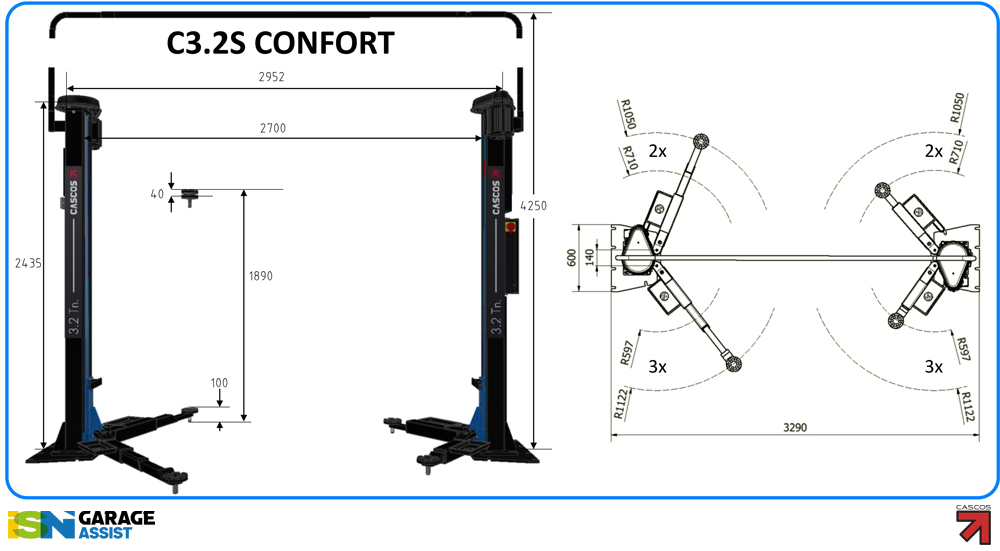

Cascos-3.2S-CON Baseless Two Post Lifts: Cascos C3.2 Syncro Two Post Lift

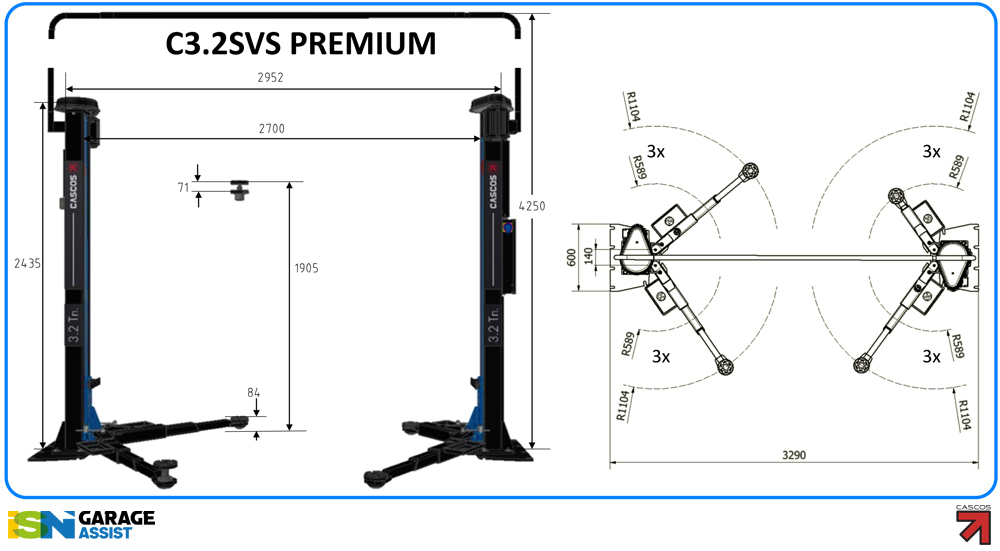

Cascos-syncro-3.2-Premium Baseless Two Post Lifts: Cascos C3.2 Syncro Two Post Lift
